Ships Direct From Auxbeam
We have do some big upgrades on the switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. The Switch Panel can change the backlit color and lighting modes to have fun programming with Auxbeam's latest RGB Slim switch panel!
Functions:
-
RGB backlight - Unlimited color options match dash lighting and vehicle
-
3 mode setting - Toggle/ Momentary/ Pulsed
- Manual backlit off - Turn off the backlight when it's daytime or when it's not necessary
- Waterproof cover - Protect the switch panel from rain & snow weather or water
-
DIY switch panel - 60pcs stickers/ 200 default icons/ phone album photos

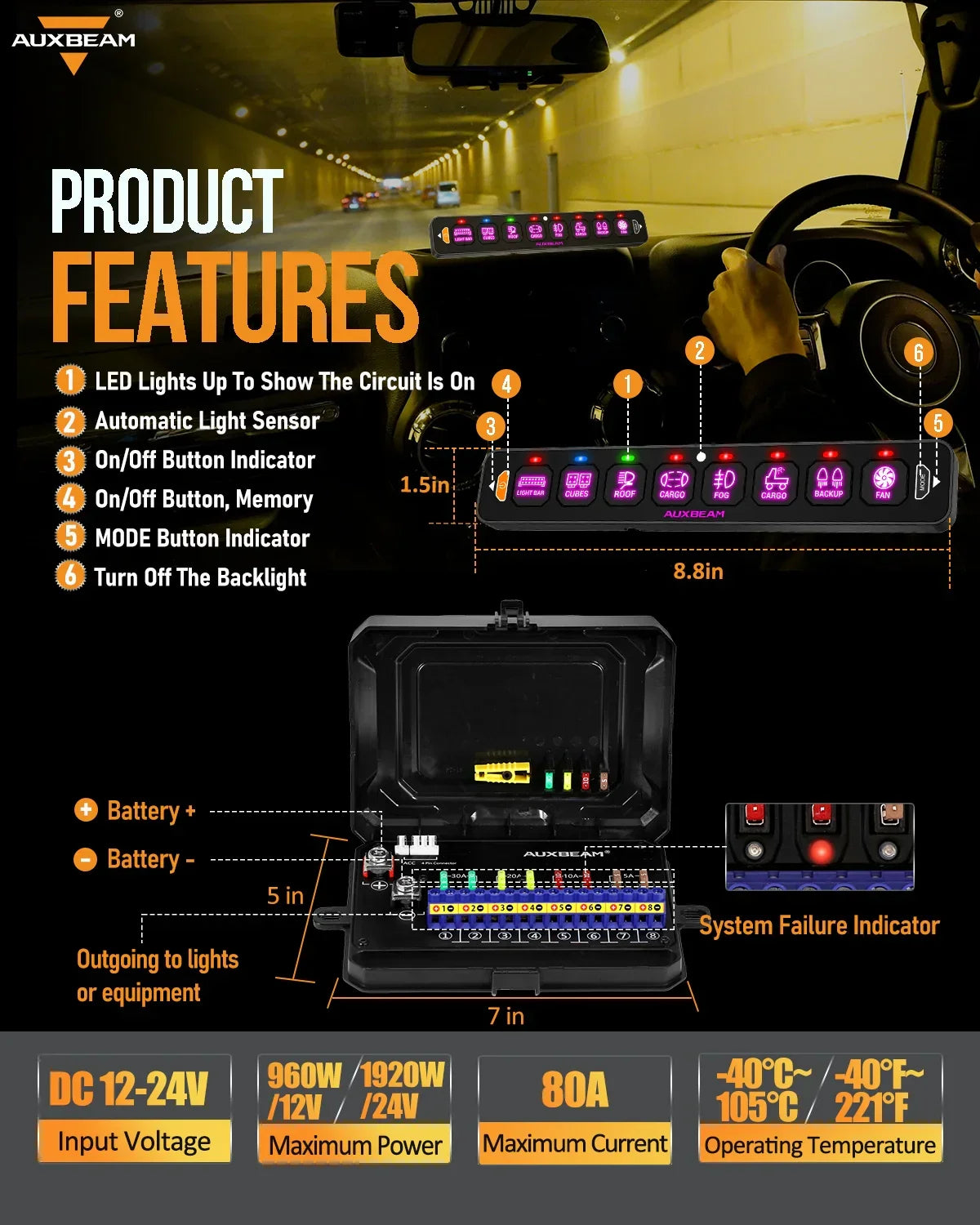

Specifications:
- Working voltage: DC 12-24V
- Max current: 80A
- Rated voltage: 12V 20A / 24V 10A
- Operating at 12 Volts: max power rating of 960W
- Operating temperature: -40°C - +105°C
- Waterproof rating: IP65
Features:

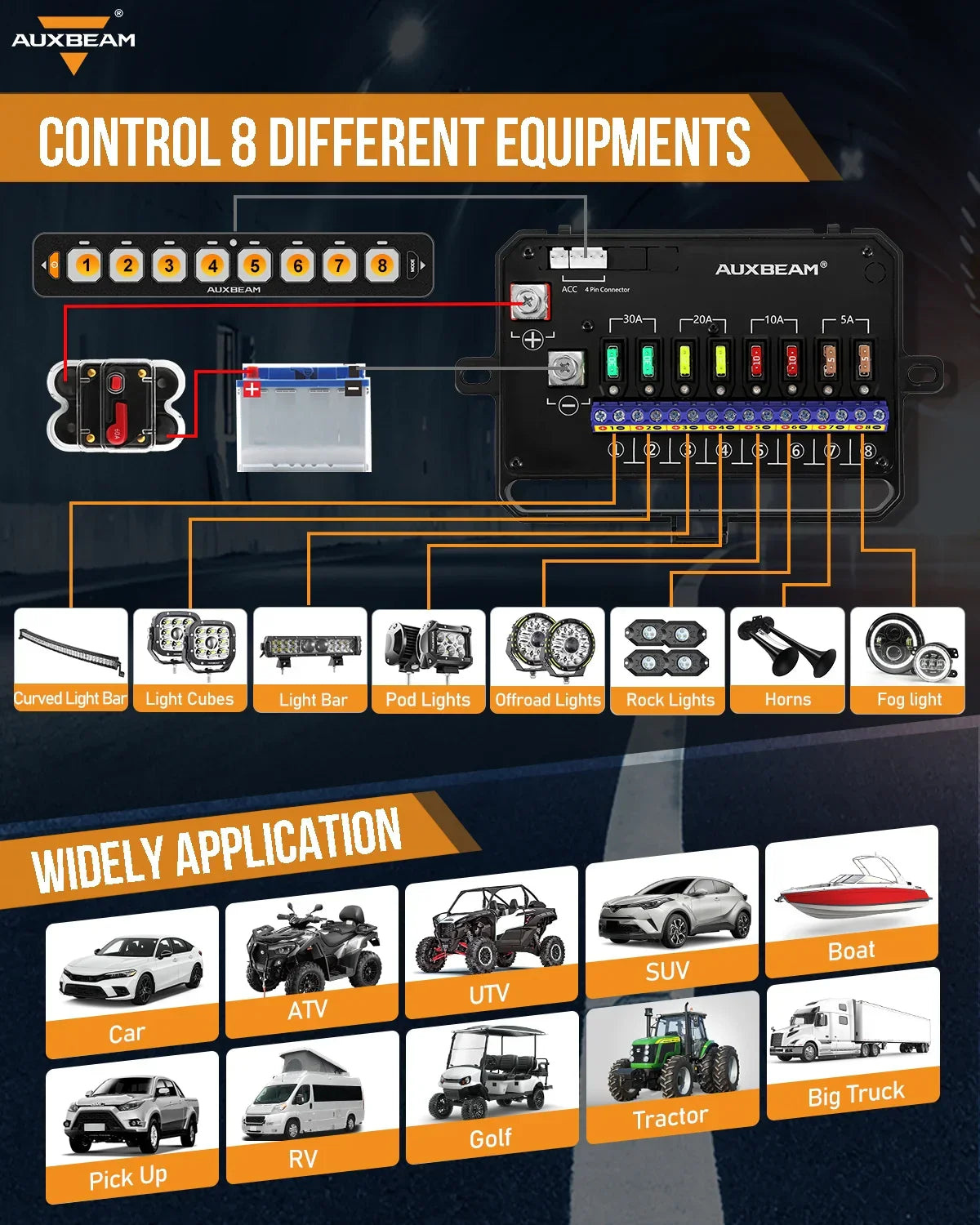

- 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 1 control method - Switch panel
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
~RED: Toggle, Constant light mode
~BLUE: Momentary, Press & hold the button to turn on, then release the button to turn off
~GREEN: Pulsed, Flash mode
-
RGB backlight color. Adjustable backlit color and brightness to match your vehicle.
-
Backlit brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
-
Customize your own switch panel with 60 universal stickers.
-
DIY button icon on APP. 200 default icons or photo from phone album.
-
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Power sports, Marine, ATV, UTV, SUV, Heavy-duty machines, etc.
-
Waterproof IP65, high sensitivity, stability and strong anti-interference ability
-

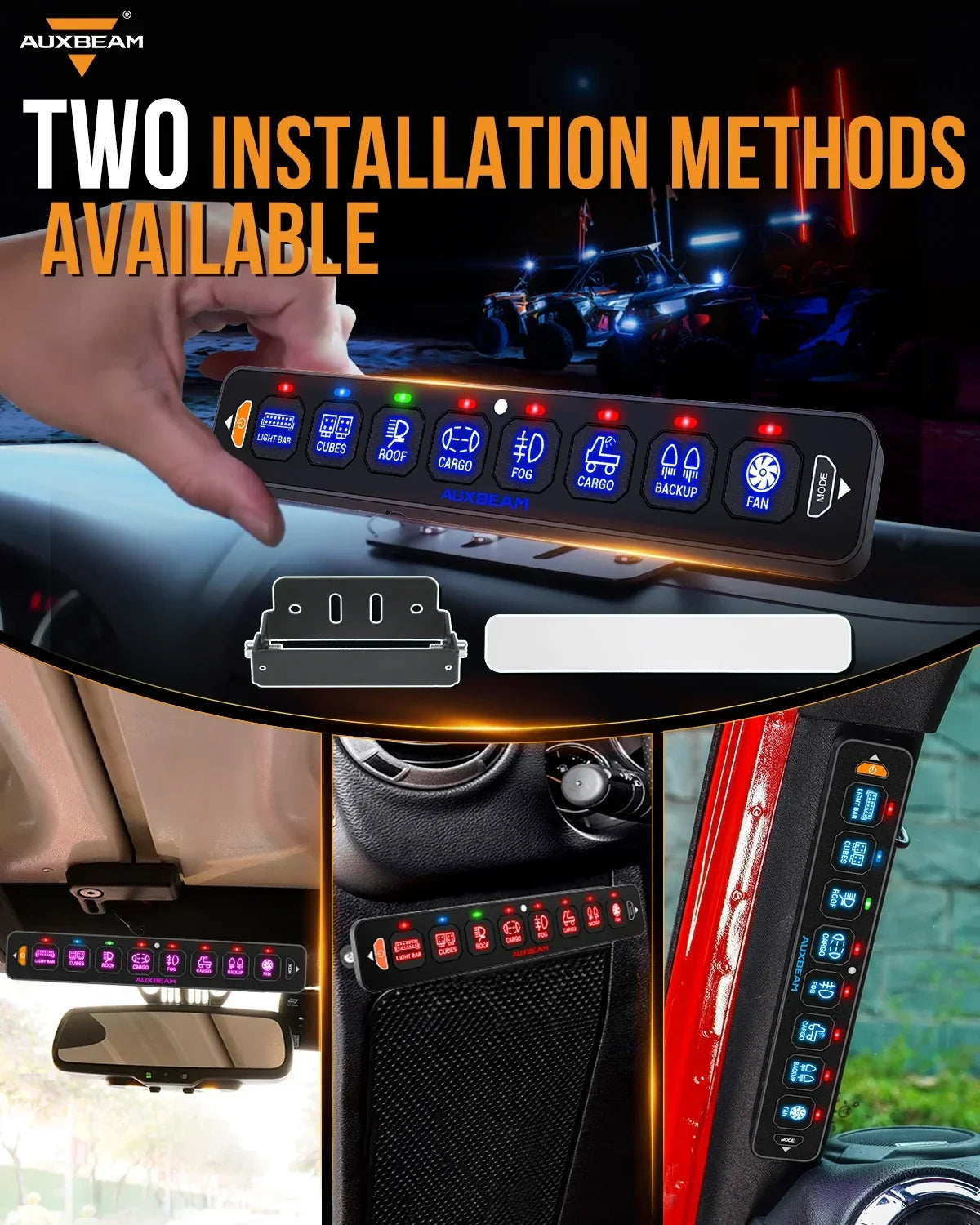

Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily. You can install anywhere you need, such as the dash panel, center console, overhead sunglasses holder, etc.
